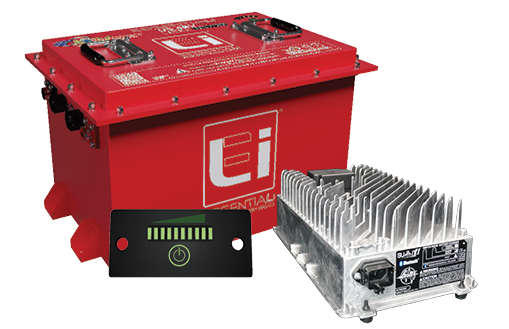

US 48V 105
Voltage
51.2-Volt Deep Cycle Lithium-Ion
US 48V 105 Dimensions
Width: 12.60” (320mm)
Length: 17.44” (443mm)
Height: 10.32” (262mm)
Weight: 92.6 lbs (42 kg)
Type
Lithium Iron Phosphate (LFP) battery
Application
Wherever Maintenance-Free, Leak Proof, Deep Cycle 48-volt batteries are needed.
US 48V 105 Data
Capacity: 105Ah
Max Continuous Discharge Current: 150A
Max. 30S Discharge Current: 250A
Max. 10S Discharge Current: 300A
Case Material
SECC Steel
US 48V 105 Terminals:
Standard:
M8 Insert

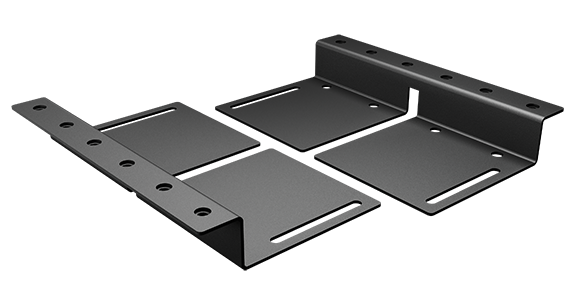

US 48V 105 Mounting Plate:
Features
STATE-OF-THE-ART BATTERY MANAGEMENT SYSTEM (BMS)
Utilizes intelligent algorithms to help ensure accurate State of Charge (SOC), delivers advanced cell balancing, and enhanced fault detection and handling for optimal performance.
CAN Networking
Automotive grade connections allow manufacturers to integrate the battery with devices such as motor controllers and chargers to allow for communication of battery status.
Waterproof
IP67 Rated Construction prevents damage from outside particles and moisture.
Fast Charging
Reach full charge in as little as 3 hours.
Wake/Status Button
Allows users to turn the battery off for maintenance or long-term storage.
Features
STATE-OF-THE-ART BATTERY MANAGEMENT SYSTEM (BMS)
Utilizes intelligent algorithms to help ensure accurate State of Charge (SOC), delivers advanced cell balancing, and enhanced fault detection and handling for optimal performance.
CAN Networking
Automotive grade connections allow manufacturers to integrate the battery with devices such as motor controllers and chargers to allow for communication of battery status.
Waterproof
IP67 Rated Construction prevents damage from outside particles and moisture.
Fast Charging
Reach full charge in as little as 3 hours.
Wake/Status Button
Allows users to turn the battery off for maintenance or long-term storage.
Additional Information
U.S. Battery’s ESSENTIAL Li® Deep Cycle Lithium-Ion Batteries are designed to meet all your power needs. Engineered using Lithium Iron Phosphate (LFP) chemistry, these batteries offer exceptional performance, reliability, and safety for a wide range of applications.
A waterproof, maintenance-free design ensures worry-free usage in any environment. Additionally, their fast charging capability guarantees minimal downtime, keeping you on the move without delay. The integrated Battery Management System (BMS) provides an extra layer of protection and convenience, ensuring prolonged battery life.
All of our Lithium-Ion batteries are specifically manufactured for U.S. Battery under our guidelines, assuring our customers they are being provided the highest quality Lithium-Ion batteries available.
U.S. Battery Product Comparison
US AGM L16 | US L16E XC2 | US L16 XC2 | US L16HC XC2 |
|
---|---|---|---|---|
Chemistry | AGM | Flooded Lead-Acid | Flooded Lead-Acid | Flooded Lead-Acid |
Dimensions | 11.61″L x 7″W x 16.65″H | Without Handles 11.875″L x 7.125″W x 16.75″H | Without Handles 11.875″L x 7.125″W x 16.75″H | Without Handles 11.875″L x 7.125″W x 16.75″H |
BCI Group Size | 903 | 903 | 903 | 903 |
Standard Terminal | Dual | Large “L” | Large “L” | Large “L” |
20 Hour Rate | 414 | 360 | 385 | 420 |
Min. @75 Amps | 275 | 198 | 225 | 250 |
Min. @25 Amps | 984 | 795 | 865 | 965 |
